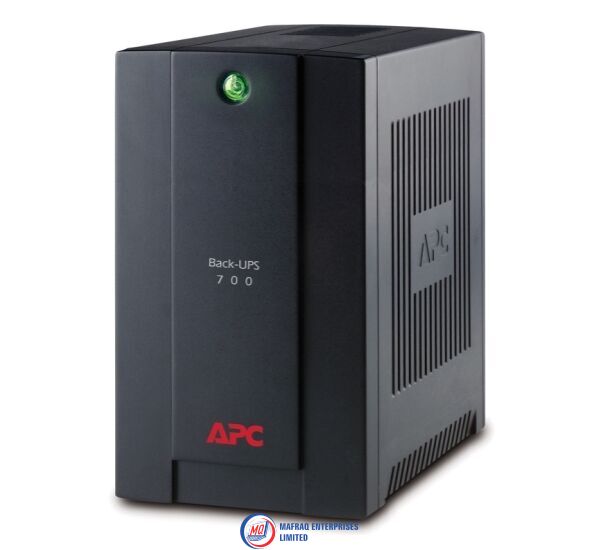

Apc back-ups 700va, 230v, avr, iec sockets

Apc back-ups 700va, 230v, avr, IEC sockets

Specifications

BX700UI Features
Key Features
Output power capacity
390Watts / 700VA
Output Connections
(1) IEC Jumpers (Battery Backup)
(4) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC-320 C14
Cord Length
1.22meters
APC Back-UPS 700VA, 230V, AVR, IEC Sockets
Battery Backup & Surge Protector for Electronics and Computers
Includes: User Manual

•     Automatic Voltage Regulation (AVR)

•     Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

•     Telephone data line surge protection

•     Provides protection of connected equipment from power surges traveling on telephone lines.

•     USB connection

•     Use your PC to access additional power protection and management features for your UPS via a USB Port.

Back-UPS Features & Benefits
Marketing Features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that requires UPS battery backup while providing surge-only protection for less critical equipment
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
Protection
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Battery and surge-protected outlets
Back up and protect your hardware and data during power outages, surges, and spikes.
Availability
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic self-test

Technical Specification

Max Configurable Power (Watts)
390Watts / 700VA
Output Frequency (sync to mains)
50/60 Hz +/-1 Hz
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
4ms typical
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
140 - 300V
Number of Power Cords
1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time
6hour(s)
Replacement Battery
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Volt-Amp-Hour Capacity
84
Communications & Management
Interface Port(s)
USB
Control panel
LED status display with On Line: On Battery: Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
273Joules
Data Line Protection
RJ-11 Modem/Fax/DSL protection (two-wire single line)
Physical
Maximum Height
200MM, 20.0CM
Maximum Width
115MM, 11.5CM
Maximum Depth
256MM, 25.6CM
Net Weight
6.0KG
Shipping weight
6.5KG
Shipping Height
275MM, 27.5CM
Shipping Width
295MM, 29.5CM
Shipping Depth
340MM, 34.0CM
