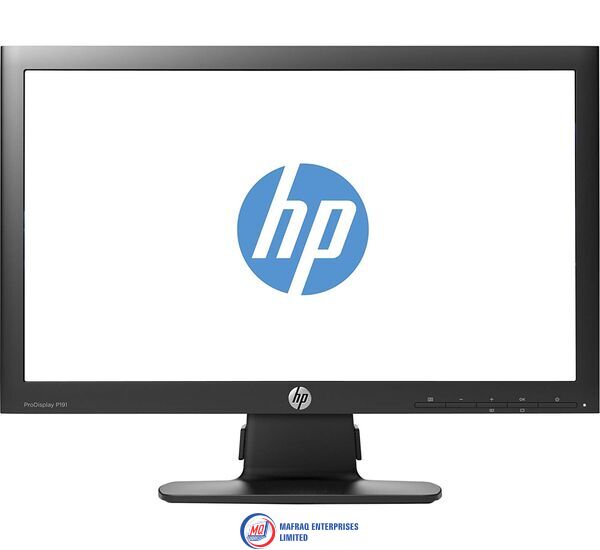

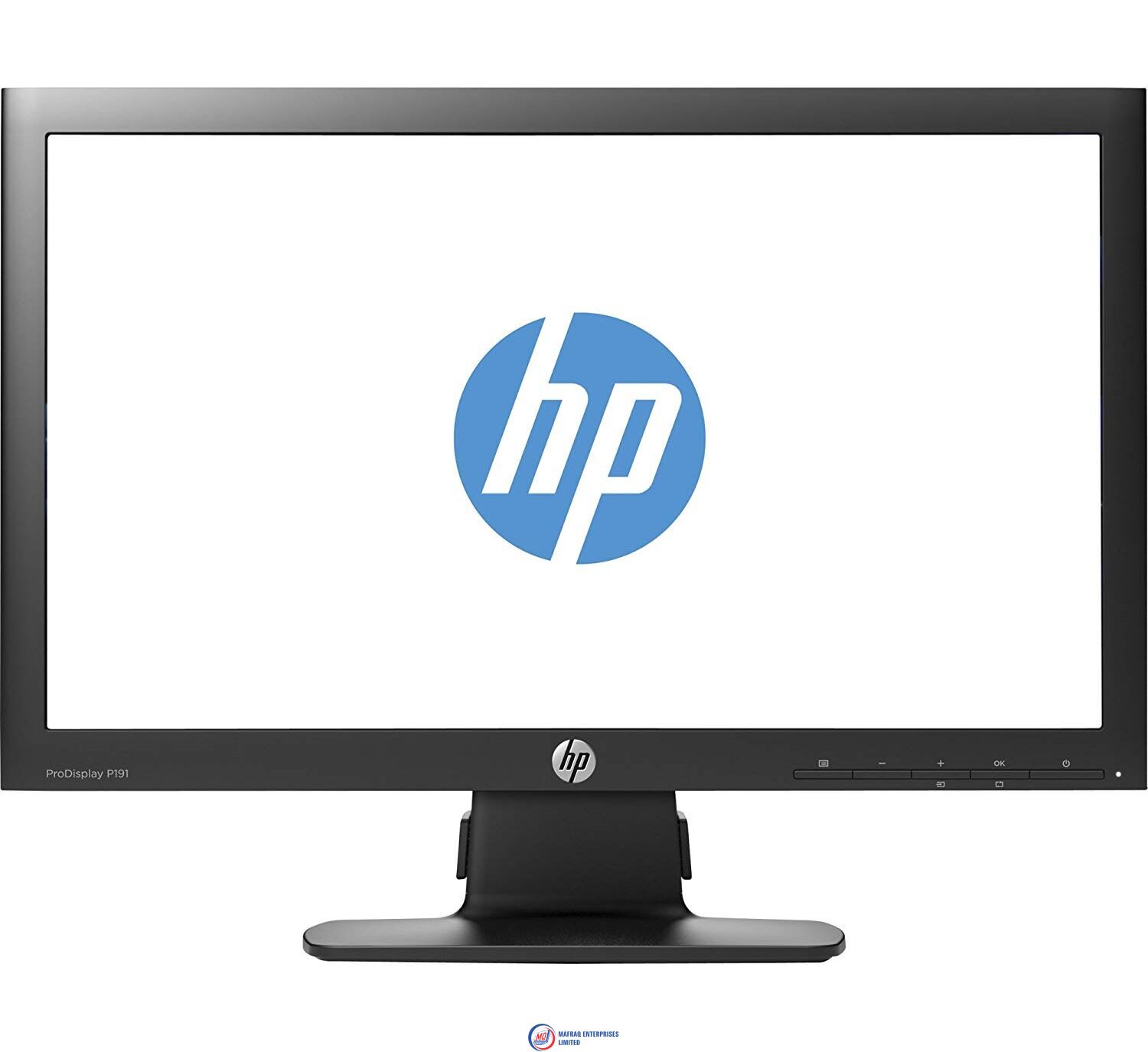

HP ProDisplay P191 18.5-inch LED Backlit Monitor

HP ProDisplay P191 18.5-inch LED Backlit Monitor

Product Features

Model

C9E54AA
Type

TN (Twisted Nematic) LED Backlit LCD
Aspect ratio

16:9
Viewable image area (diagonal)

46.99 cm (18.5 in) widescreen; diagonally measured
Screen opening (W x H)

40.98 x 23.04 cm (16.13 x 9.07 in)
Viewing angle (typical)

Up to 170° horizontal/160° vertical (10:1 minimum contrast ratio)
Brightness (typical)1

250 nits (cd/m2)
Contrast ratio (typical)1

1000:1
Dynamic contrast ratio (typical)1

3,000,000:1
Response time (typical)1

5 ms (On/Off)
Pixel pitch

0.3 mm
Backlight lamp life (to half brightness)

30,000 hours
Color gamut (typical)

72%
Color support2

Can display up to 16.7 million colors

Screen Display (OSD) controls
Specifications

Description
Buttons or Switches

Menu, Minus ("-"), Plus ("+"), OK/Auto and Power
Languages

English, French, German, Italian, Dutch, Spanish, Japanese, Portuguese, Traditional Chinese, and Simplified Chinese
User controls

Brightness, contrast, positioning, color temperature (6500K 9300K, custom), individual color control, serial number, display, clock, clock phase, monitor management, factory reset.
Signal interface/performance
Specifications

Description
Horizontal frequency

24 to 83 kHz
Vertical frequency

50 to 76 Hz
Native resolution

1366 x 768 @ 60 Hz
Preset VESA graphic modes (non-interlaced)


    640 x 480 @ 60 Hz
    720 x 400 @ 70 Hz
    800 x 600 @ 60 Hz
    1024 x 768 @ 60 Hz
    1280 x 720 @ 60 Hz
    1280 x1024 @ 60 Hz
    1366 x 768 @ 60 Hz

Text mode

720 x 400 @ 70 Hz
Maximum pixel clock speed

140 MHz
User programmable modes

Yes (10)
Anti-Glare

Yes
Default color temperature

6500K
Video/Other inputs
Specifications

Description
Plug and play

Yes
Input connectors

VGA (analog)
Input impedance

75 Ohms
Sync input

TTL separate synch
Video cable

One 15-pin D-sub (VGA)
Video cable lengths

1.8 m (5.9 ft)
Audio

No
Audio cable length

N/A
Power specifications
Specifications

Description
Power supply

Internal
Input power

100 to 240 V ac, 50 or 60 Hz
Typical power consumption

18 W
Maximum

20 W
Power saving

< 0.5 W
Power cable length

1.9 m (6.2 ft)
Energy consumption
State

115 V ac (60 Hz)

230 V ac (50 Hz)

100 V ac (60 Hz)
Normal operation

9 W

9.6 W

N/A
Sleep

0.29 W

0.38 W

N/A
Off

0.21 W

0.27 W

N/A
Heat dissipation
State

115 V ac (60 Hz)

230 V ac (50 Hz)

100 V ac (60 Hz)
Normal operation

30.78 BTU/hr

32.832 BTU/hr

N/A
Sleep

0.9918 BTU/hr

1.2996 BTU/hr

N/A
Off

0.7182 BTU/hr

0.9234 BTU/hr

N/A

Physical specifications
Specifications

Description
Dimensions (W x D X H)


    Unpacked w/stand: 44.93 x 14.3 x 34.1 cm (17.69 x 5.62 x 13.43 in)
    Unpacked w/o stand (head only): 44.93 x 4.75 x 27.5 cm (17.69 x 1.87 x 10.86 in)
    Packaged: 51.5 x 12.8 x 40.2 cm (20.28 x 5.04 x 15.83 in)

Weight

    Base area (footprint): 21.49 x 14.3 cm (8.46 x 5.62 in)
    Head only: 2.76 kg (6.08 lb)
    Unpacked: 3.2 kg (7.1 lb)
    Packaged: 4.2 kg (9.3 lb)

Tilt range

-5° to +25°
Swivel range

No
Height adjustable

No
Pivot rotation

No
Base

Ships detached
