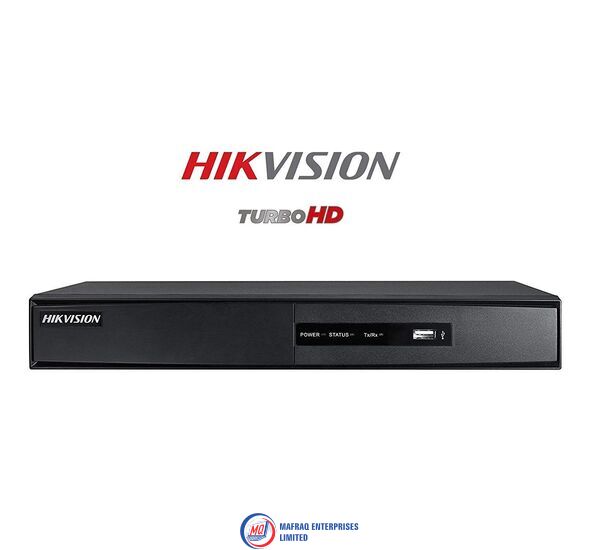

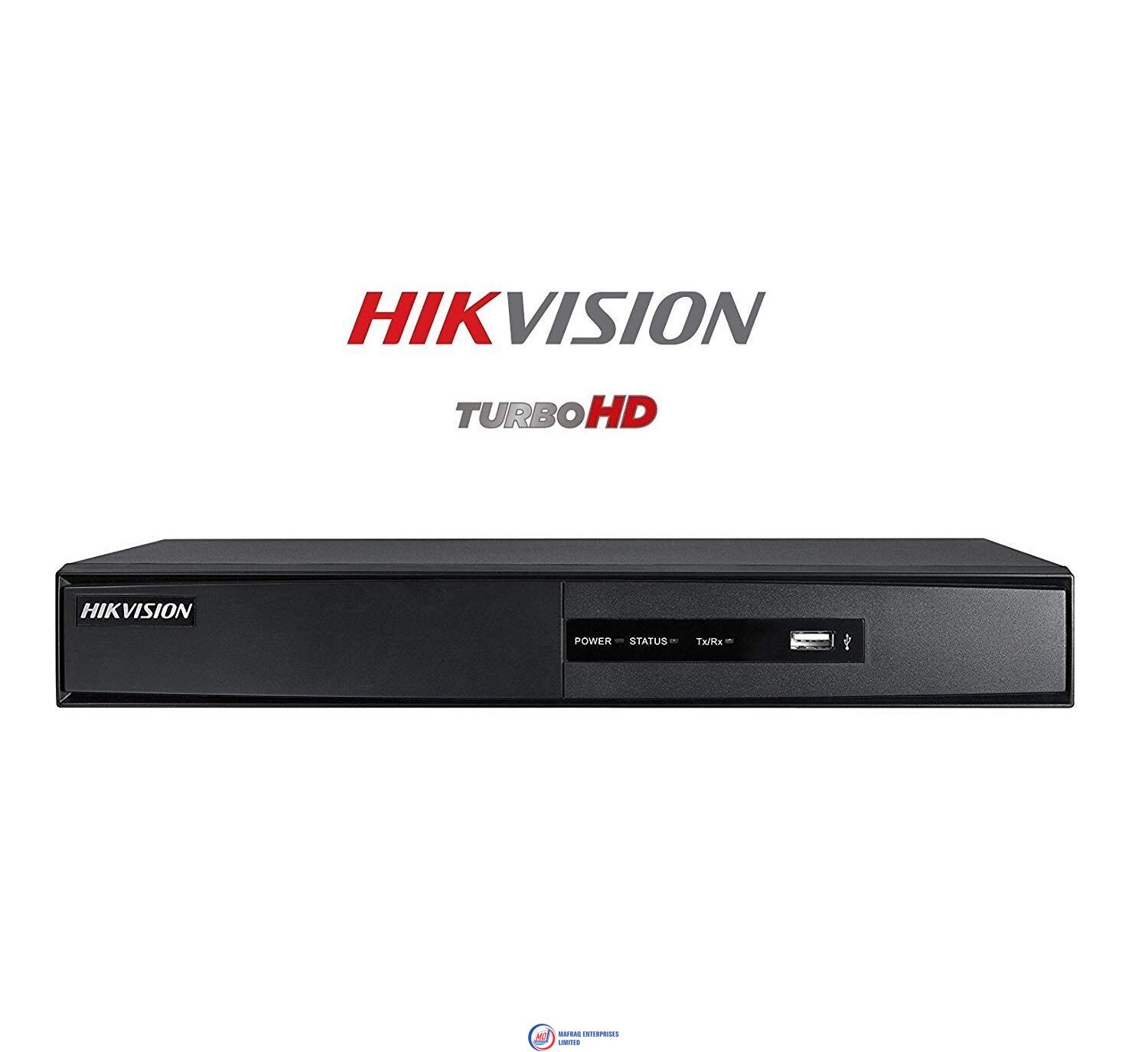

Hikvision 16 channel full hd dvr

Hikvision 16 channel full hddvr

About this Item

• H.264 /H.264+& Dual-stream video compression

• Support both HD-TVI /analog and AHD cameras with adaptive access

• Full channel recording at up to 1080P lite resolution

• HDMI and VGA output at up to 1920×1080P resolution

• Long transmission distance over coax cable

• Support 16-ch synchronous playback at 720P resolution

Video/Audio Input

Audio Input: | 1-ch

Video Compression: | H.264,H.264+

Analog and HD-TVI video input: | 16-ch BNC interface (1.0Vp-p, 75 Ω)

Supported camera types: | Support HDTVI input: 1080p/25Hz, 1080p/30Hz,720P/25Hz, 720P/30Hz,

Support AHD input: 720P/25Hz, 720P/30Hz,

support CVBS input

Audio Compression: | G.711u

Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output

HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 /60 Hz, 1024 × 768 / 60 Hz

Recording resolution: | When 1080p Lite mode not enabled:720p/WD1/4CIF/VGA/CIF;

When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF

Frame Rate: | Mainstream:

When 1080p Lite mode is not enabled:

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

When 1080p Lite mode is enabled:

1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Video Bit Rate: | 32 Kbps ~ 4 Mbps

Stream Type: | Video/Video&Audio

Audio Output: | 1-ch RCA(Linear, 1kΩ)

Audio Bit Rate: | 64kbps

Dual Stream: | Support

Playback Resolution: | 1080p lite/720p/WD1/4CIF/VGA/CIF

Synchronous Playback: | 16-ch

Network management

Remote connections: | 128

Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP,SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk Driver

Interface Type: | 1 SATA Interface

Capacity: | Up to 6 TB capacity for each disk

External Interface

Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface

USB Interface: | 2 USB 2.0 Interfaces
