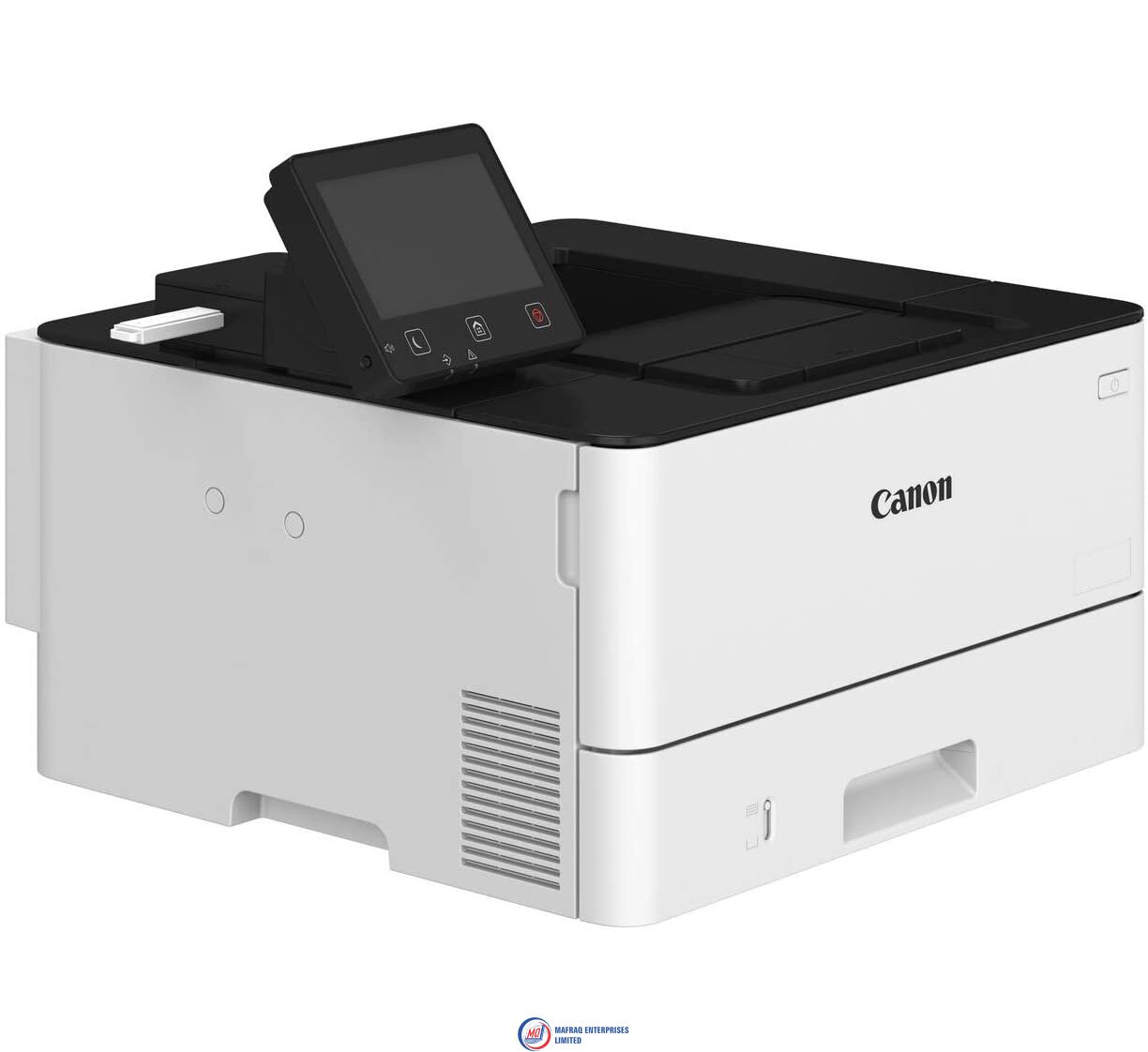

Canon i-SENSYS LBP223dw A4 Mono Laser Print 33ppm Auto-Duplex

Canon i-SENSYS LBP223dw A4 Mono Laser Print 33ppm Auto-Duplex

Specifications

Printer Engine

    Print speed

    LBP223dw:
    Single sided: Up to 33 ppm (A4)

                         Up to 52.5 ppm(A5-Landscape)

    Double sided: Up to 28.7 ipm (A4)

    LBP226dw/LBP228x†:

    Single sided : Up to 38 ppm (A4)

                          Up to 63.1 ppm(A5-Landscape)

    Double sided : Up to 31.9 ipm (A4)

    Printing method

    Monochrome laser beam printing
    Print Resolution

    600 x 600 dpi
    Print Quality with Image Refinement Technology

    Up to 1200 x 1200 dpi
    Warm-up Time

    Approx. 14 seconds or less from power on
    First Page Out Time

    Approx: 5.5 seconds or less
    Recommended Monthly Print Volume

    750 - 4,000 pages per month
    Duty cycle

    80,000 pages
    Print margins

    5 mm-top, bottom, left and right
    Advanced printing features

    LBP223dw:

    Google Cloud Print Ready
    iOS: AirPrint, Canon PRINT Business app
    Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

    LBP226dw:

    Secure Print
    Google Cloud Print Ready
    iOS: AirPrint, Canon PRINT Business app
    Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

    LBP228x†:

    Secure Print
    Barcode Print1
    Google Cloud Print Ready
    iOS: AirPrint, Canon PRINT Business app
    Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app"

Media Handling

    Paper input (Standard)

    250-sheet cassette
    100-sheet multi-purpose tray
    Paper input (Option)

    550-sheet cassette
    Paper output

    150-sheet
    Media types

    Plain paper, Recycled paper, Heavy Paper, Thin paper, Label, Post card, Envelope
    Media sizes

    Cassette (Standard and optional):
    A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Custom sizes: Min. 105 x 148 mm Max. 216.0 x 355.6 mm.

    Multi-purpose tray:
    A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Indexcard, Envelope (COM10, Monarch, C5, DL), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm."

    Media weights

    Cassette (standard and optional): 60 to 120 g/m²m
    Multi-purpose tray: 60 to 163 g/m²
    Double Sided Printing

    A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
    Custom size - Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm 60 to 120 g/m2

General features

    Power requirements

    220-240V(±10%) 50/60Hz (±2Hz)
    Power Consumption

    Maximum: Approx. 1,330 W

    Standby: Approx. 9 W

    Sleep mode: Approx. 0.9 W

    Typical Electricity Consumption (TEC):

    LBP223dw: 0.9 kWh/week

    LBP226dw/LBP228x†: 1.0 kWh/week (230V)2

    For detailed information relating to Lot26 regulation, please go to: http://www.canon-europe.com/For_Work/Lot26/index.aspx

    Noise Level

    Sound Pressure3:
    Active: 54 dB
    Standby: Inaudible4

    Sound Power5:
    Active: 68 dB
    Standby: Inaudible36

    Dimensions (W x D x H)

    LBP223dw/LBP226dw:
    401 mm x 373 mm x 250 mm

    LBP228x†:
    438 mm x 373 mm x 312 mm

    Weight

    LBP223dw/LBP226dw:
    Approx. 9.5 Kg

    LBP228x†:
    Approx. 9.9 Kg

    Operating Environment

    Temperature: 10 to 30ºC (50 to 86ºF)
    Humidity 20 to 80% RH (no condensation)
    Control Panel

    LBP223dw/LBP226dw:
    5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad

    LBP228x†:
    12.7 cm LCD Colour Touch Screen

Controller

    Processor Speed

    800MHz x 2
    Memory

    1GB
    Printer Languages

    LBP223dw: UFRII, PCL 5e4, PCL6

    LBP226dw: UFRII, PCL 5e4, PCL6, Adobe® PostScript

    LBP228x†: UFRII, PCL 5e4, PCL6, Adobe® PostScript

    Fonts

    LBP223dw: 45 PCL fonts

    LBP226dw: 45 PCL fonts, 136 PS fonts

    LBP228x†: 93 PCL fonts, 136 PS fonts

    Interface and connectivity

    USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
    Software and printer management

    LBP223dw/LBP226dw:
    Remote User Interface (RUI), Department ID Management, Toner Status Tool, iW Management Console: Server-based software for centralised management of a fleet of devices
    eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.

    LBP228x†: Remote User Interface (RUI), Department ID Management, Toner Status Tool, iW Management Console: Server-based software for centralised management of a fleet of devices
    eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics. Universal Log-in Manager / uniFLOW online / uniFLOW online Express / uniFLOW compatibility Application Library

    Operating System compatibility

    Windows® 10 / Windows® 8.1 / Windows® 7 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012 / Server® 2008R2 / Server® 2008
    Mac OS X version 10.9.5 & up / Mac OS 10.14
    Linux5

Consumable

    All-in-One cartridges

    Cartridge 057 (3,100 pages7)8 Cartridge 057H (10,000 pages9)10

Accessories / options

    Items

    LBP223dw/LBP226dw:
    Cassette Feeding Module-AH1

    LBP228x†:
    Cassette Feeding Module-AH1
    MiCard Multi (Card reader for identification with RFID or magnetic cards with uniFLOW)
    Micard Plus (Card reader for identification with RFID or magnetic cards with uniFLOW)
    MiCard Attachment kit-B1
    Barcode Printing Kit-E1E
